Facon 12V RV Dimmer Switch, PWM Touch Dimmer Switch with Indicator Light, 12V / 24V Switch use with LED Lights, Incandescent and Halogen Bulbs for RV, Camper, Marine, and Strip Lights
- This PWM Touch Dimmer Switch Compatible to Use with LED Lights, Incandescent , Halogen bulbs and LED Strip Lights with Only 12Volts or 24Volts DC Power Supply

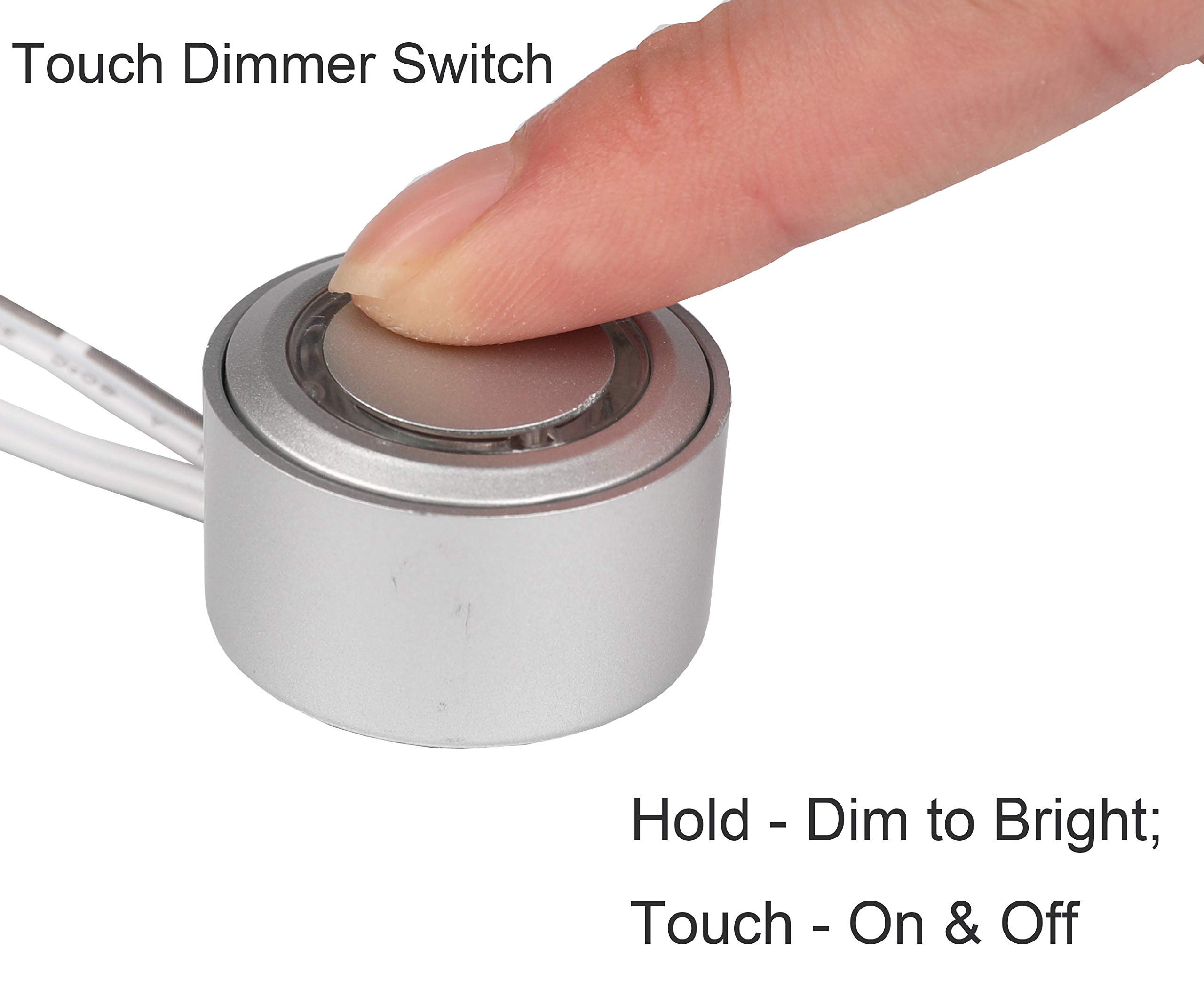

- Full Range of Brightness Control: Hold - Dim to Bright; Touch - On & Off. Max Rate up to 36 Watts with 12Volts or 72 Watts with 24Volts Power, 3 Amps to Use with Single or Multi-lights

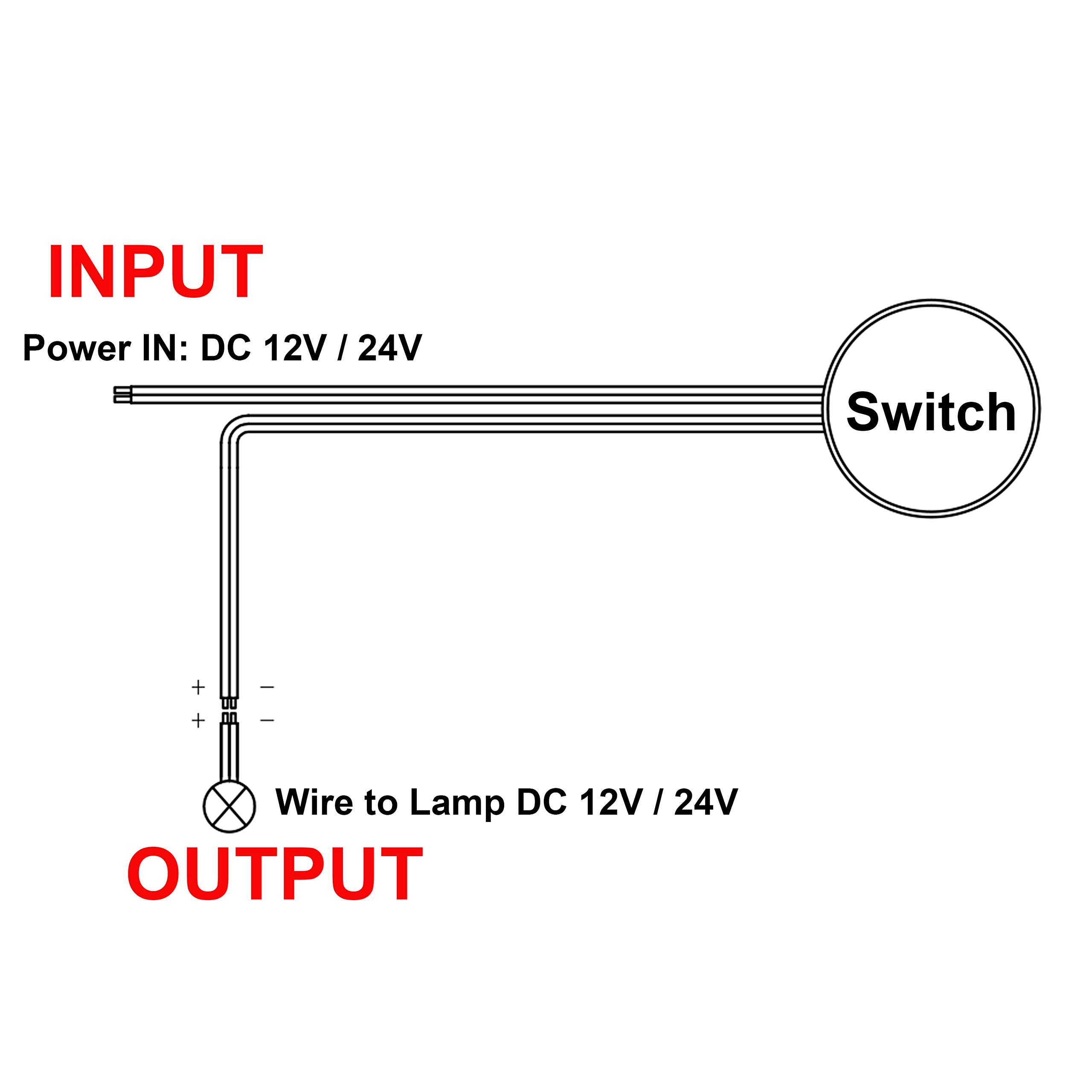

- Installed in the Standard 4-Wires Configuration: First Connect the IN+ & IN- to DC 12 Volts or 24Volts Power Supply; then Connect the OUT+ & OUT- to Your Lamps. If your RV only have 1 wire, and it is positive wire. Please connect the white wire(negative(-) wire) to the metal frame on your RV / Camper / Trailer.
- Replace Your Existing On&Off Switch with this NEW Technology Wall Mount & Panel Touch Dimmer Switch to Create Low-Light Ambiance. Make sure the voltage is 12Volts or 24 Volts DC.

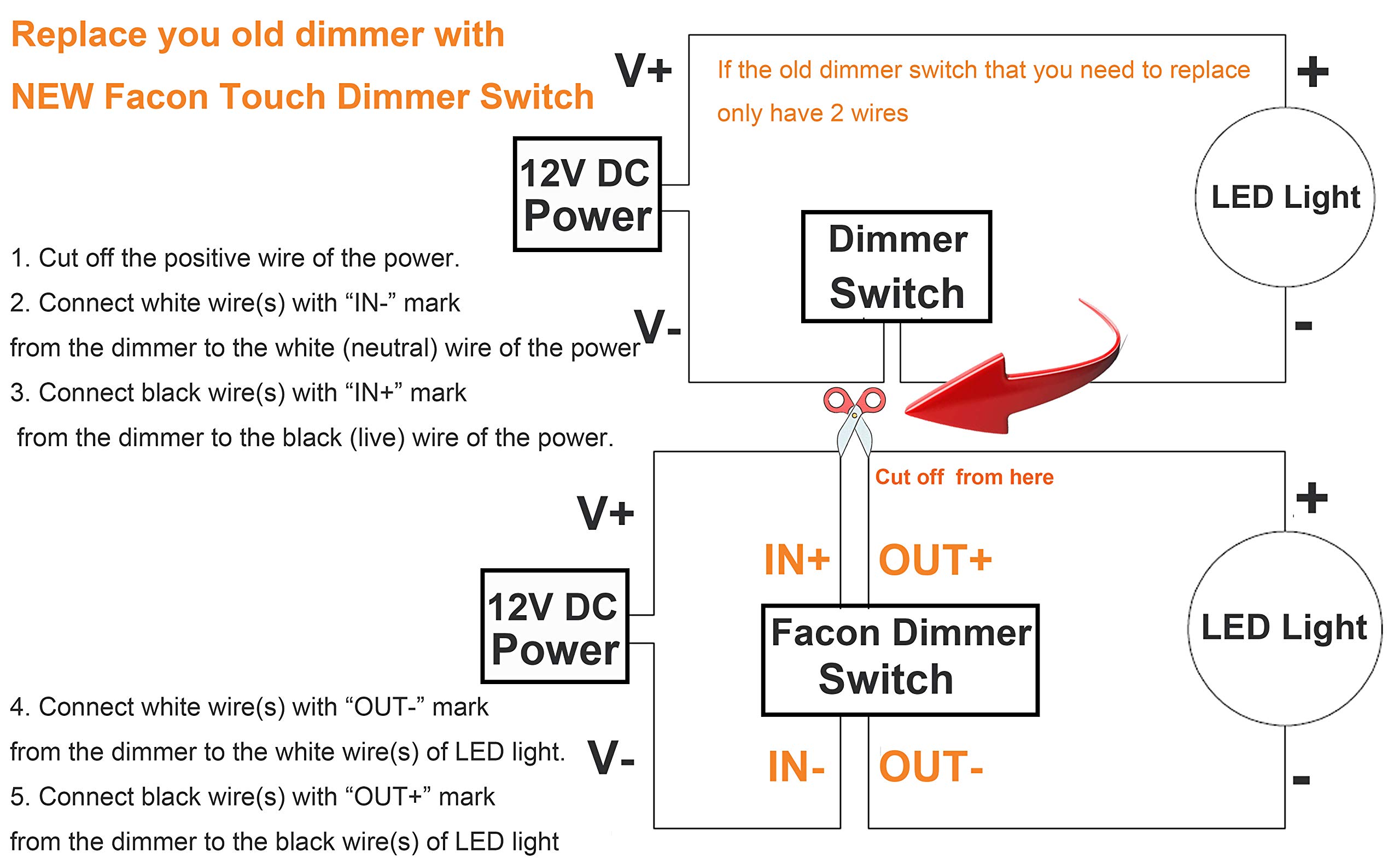

- Please Note - Many RV Light Wwitches only interrupt the 12V positive wire. This dimmer requires you to connect the negative wires also (positive in, positive out, negative in, negative out, as labeled on the wires). If you can’t locate the negative wire going to your lights, this dimmer won’t work
Select Color
From $12.99
Facon 12V RV Dimmer Switch, PWM Touch Dimmer Switch with Indicator Light, 12V / 24V Switch use with LED Lights, Incandescent and Halogen Bulbs for RV, Camper, Marine, and Strip Lights—
$12.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- This PWM Touch Dimmer Switch Compatible to Use with LED Lights, Incandescent , Halogen bulbs and LED Strip Lights with Only 12Volts or 24Volts DC Power Supply
- Full Range of Brightness Control: Hold - Dim to Bright; Touch - On & Off. Max Rate up to 36 Watts with 12Volts or 72 Watts with 24Volts Power, 3 Amps to Use with Single or Multi-lights
- Installed in the Standard 4-Wires Configuration: First Connect the IN+ & IN- to DC 12 Volts or 24Volts Power Supply; then Connect the OUT+ & OUT- to Your Lamps. If your RV only have 1 wire, and it is positive wire. Please connect the white wire(negative(-) wire) to the metal frame on your RV / Camper / Trailer.
- Replace Your Existing On&Off Switch with this NEW Technology Wall Mount & Panel Touch Dimmer Switch to Create Low-Light Ambiance. Make sure the voltage is 12Volts or 24 Volts DC.
- Please Note - Many RV Light Wwitches only interrupt the 12V positive wire. This dimmer requires you to connect the negative wires also (positive in, positive out, negative in, negative out, as labeled on the wires). If you can’t locate the negative wire going to your lights, this dimmer won’t work
